Aircraft Tire & Wheel Service Carts

WAAG’s Aircraft Tire & Wheel Service Carts are built to withstand the day-to-day abuse common on the tarmac. The heavy-duty steel construction and long-lasting powder coat finish ensure that our GSE tire carts are engineered to survive years of airport use. The tire and wheel service cart is equipped with large wheels and heavy-duty axles with 5-lug hubs for ease of maneuverability. Once in place, simply lift the tow bar to set the brake. Dividers built into our tire and wheel service cart hold jacks and wheels separately for ease of access. Carts equipped with tank mounts allow the tanks to tilt thus eliminating overhead clearance concerns common with many aircraft.

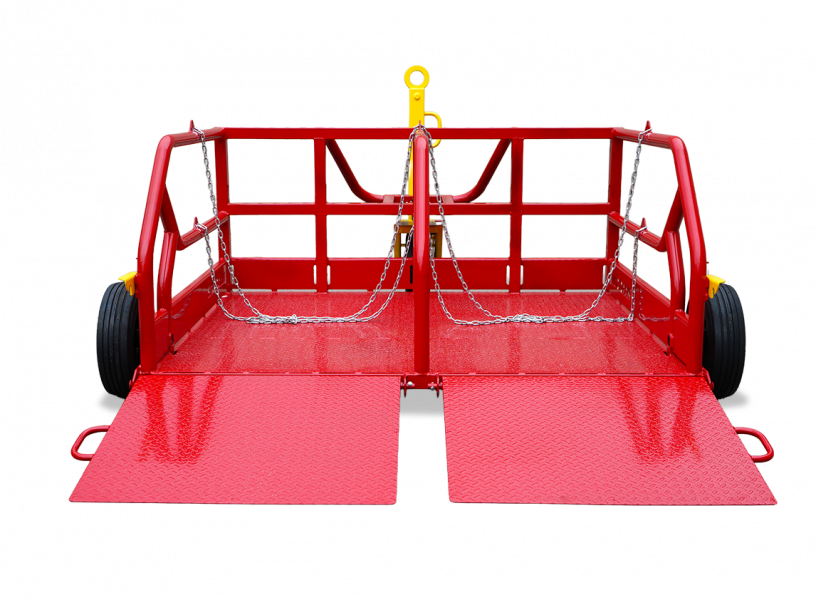

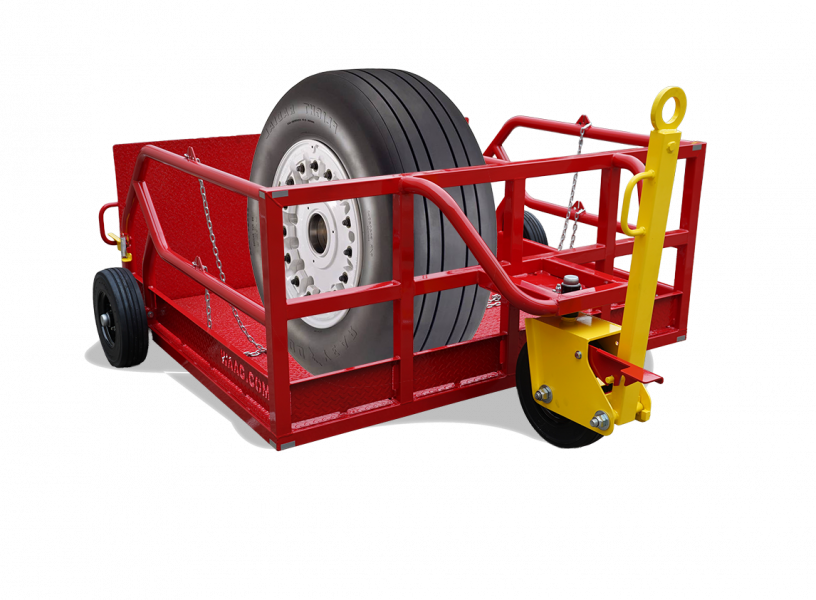

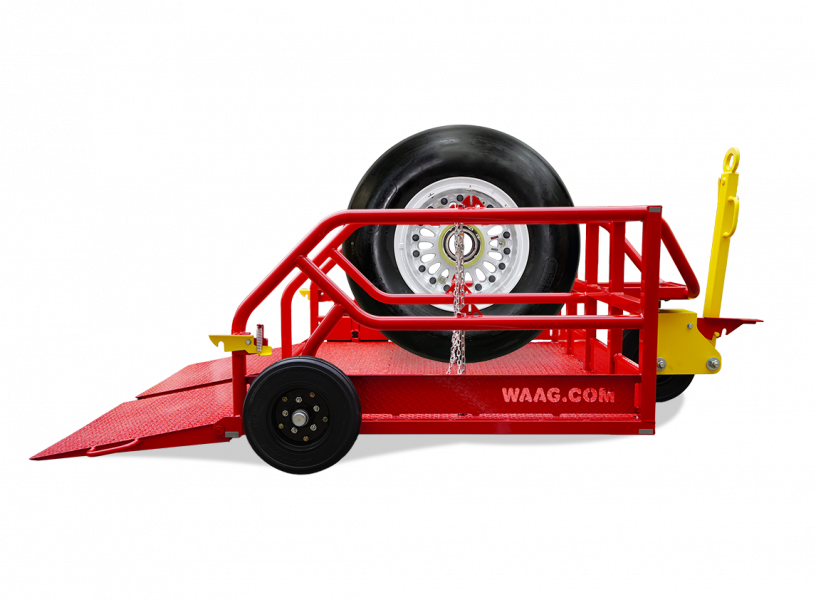

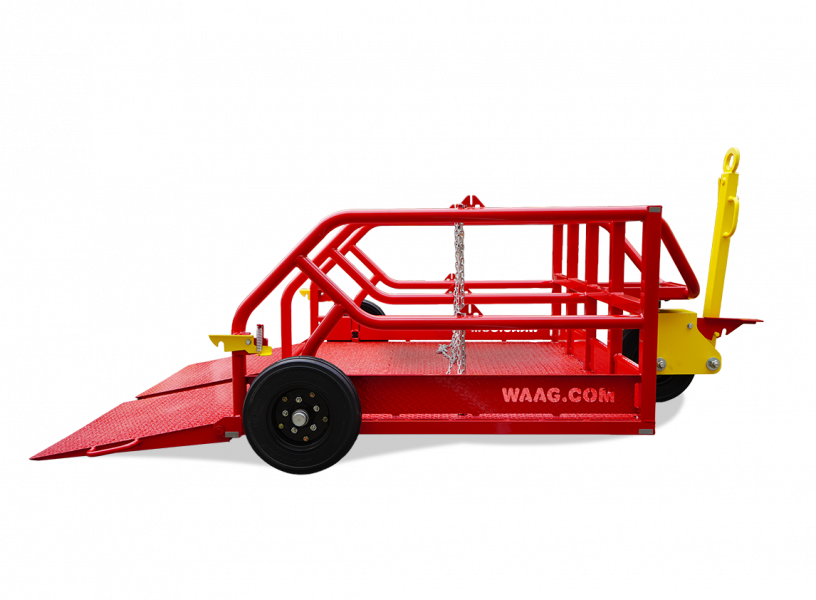

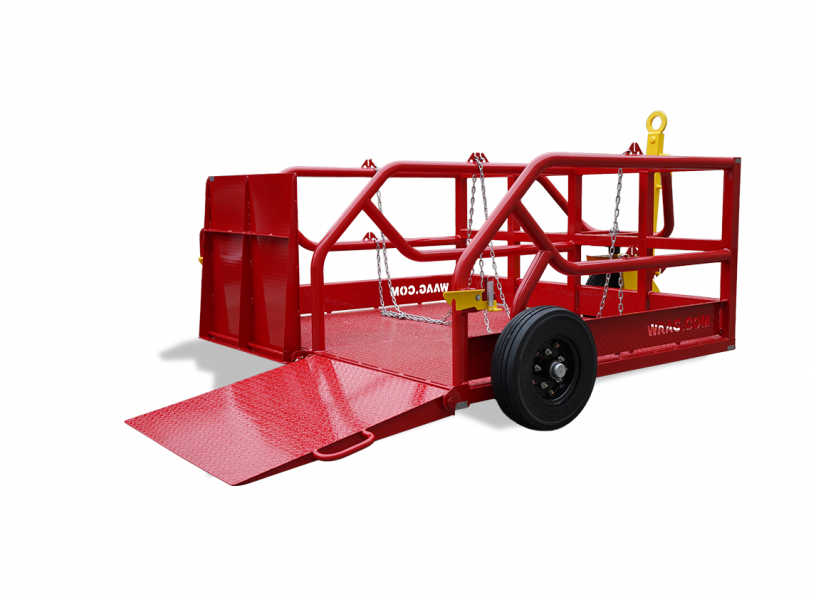

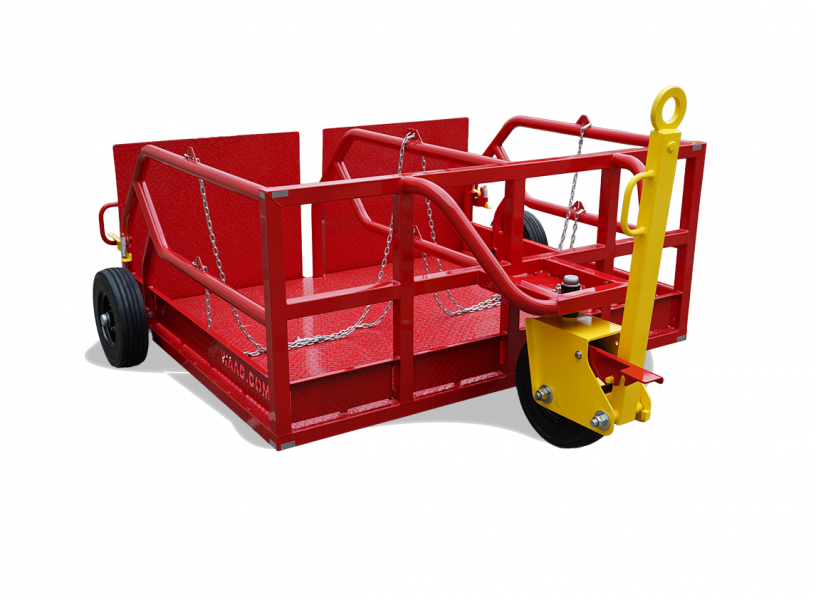

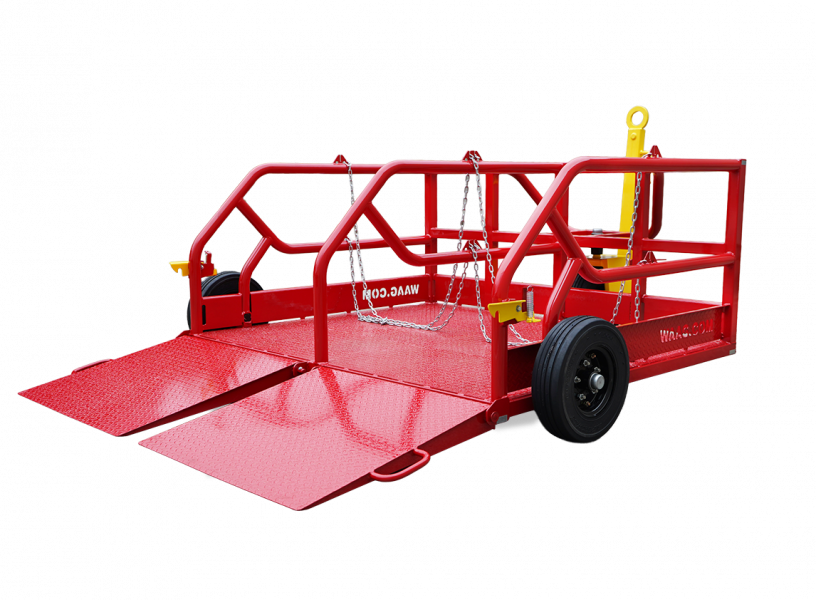

Small Split Ramp Tire Service Cart – #70246

Storage Area: Two separate bays each measuring 76″ x 33″
Overall Length: 120″ L x 86″ W x 42″ H

Heavy duty steel construction: Ample cross bracing for durability and long service life.
Positioning Jack: Side-crank positioning jack allows easy movement when not on a tow vehicle.
Tire Organization: Two separate bays hold tires and jacks separately for ease of access.
Low Clearance Design: Low slope ramp for easy loading and unloading.
Main wheels: Two 16″ x 4″ Solid rubber main wheels feature heavy-duty axles and 5-lug hubs.
Finish: Powder coated with WAAG high visibility orange (other colors on request) and a second powder coat of UV resistant clear.
Any size made to order.

REQUEST QUOTE

Tire Service Cart – #70132

Overall Size: 153” L x 90” W x 48” H
Storage Area: 118″ L x 67″ W x 30″ H

Heavy duty steel construction: Ample cross bracing for durability and long service life. Heavy-duty tow bar.
Tow-Bar Brake: Lift the tow bar to set the brake and lock the cart in place.
Tire Organization: Dividers hold tires and jacks separately for ease of access.
Low Clearance Design: Tank holders swivel for aircraft clearance.
Main wheels: Six 16″ x 4″ Solid rubber main wheels feature heavy-duty axles and 5-lug hubs.
Finish: Powder coated with WAAG high visibility orange (other colors on request) and a second powder coat of UV resistant clear.
Any size made to order.

REQUEST QUOTE

Tire Service Cart – #70162

Overall Size: 178″ L x 90″ W x 48″ H
Storage Area: 144″ L x 67″ W x 30″

Heavy duty steel construction: Ample cross bracing for durability and long service life. Heavy-duty tow bar.
Tow-Bar Brake: Lift the tow bar to set the brake and lock the cart in place.
Tire Organization: Dividers hold tires and jacks separately for ease of access.
Low Clearance Design: Tank holders swivel for aircraft clearance.
Main wheels: Six 16″ x 4″ Solid rubber main wheels feature heavy-duty axles and 5-lug hubs.
Finish: Powder coated with WAAG high visibility orange (other colors on request) and a second powder coat of UV resistant clear.
Any size made to order.

REQUEST QUOTE

Tire Service Cart – #70155

Overall Size: 199″ L x 90″ W x 48″ H
Storage Area: 164″ L x 67″ W x 30″ H

Heavy duty steel construction: Ample cross bracing for durability and long service life.Heavy-duty tow bar.
Tow-Bar Brake: Lift the tow bar to set the brake and lock the cart in place.
Tire Organization: Dividers hold tires and jacks separately for ease of access.
Low Clearance Design: Tank holders swivel for aircraft clearance.
Main wheels: Six 16″ x 4″ Solid rubber main wheels feature heavy-duty axles and 5-lug hubs.
Finish: Powder coated with WAAG high visibility orange (other colors on request) and a second powder coat of UV resistant clear.
Any size made to order.
