A-320 / 737 / 737 MAX / E-175 / E-190 – Adjustable Fueling Stand GSE #21147

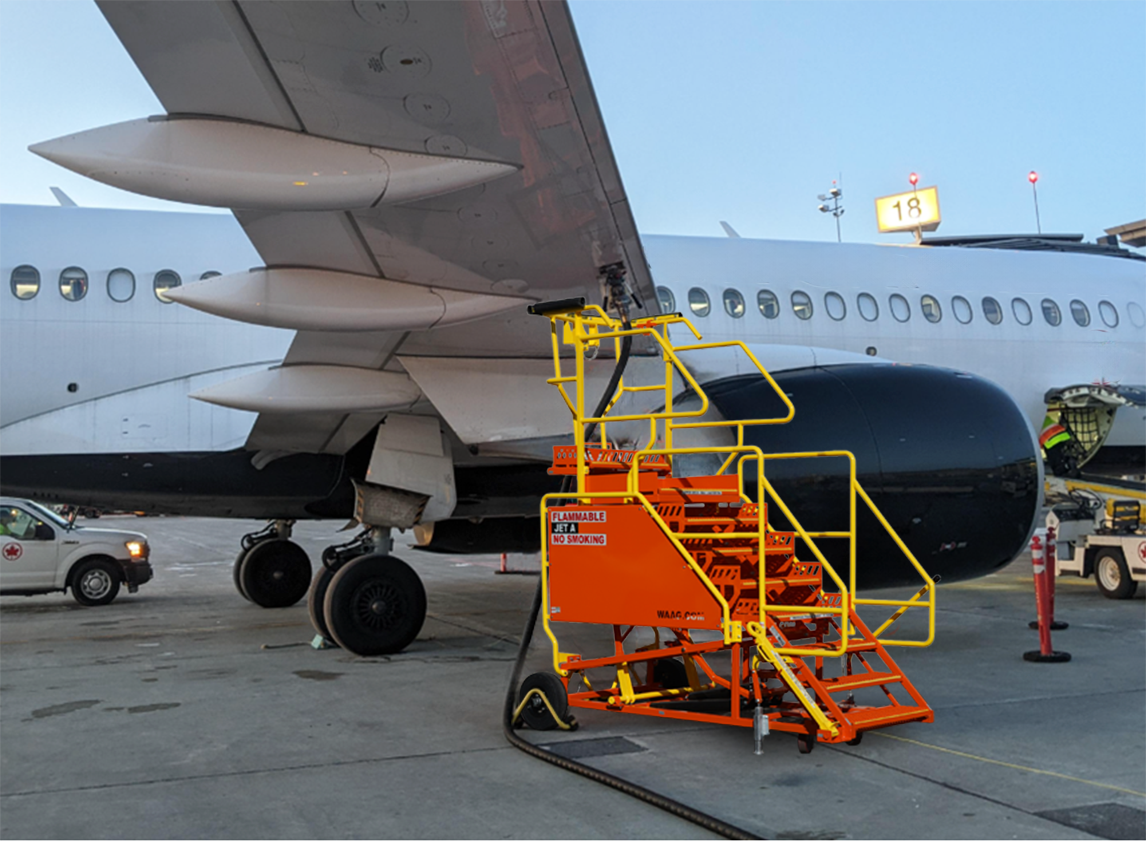

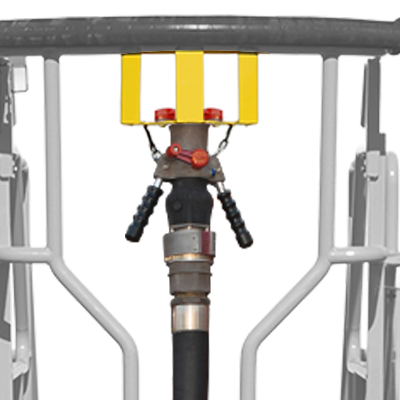

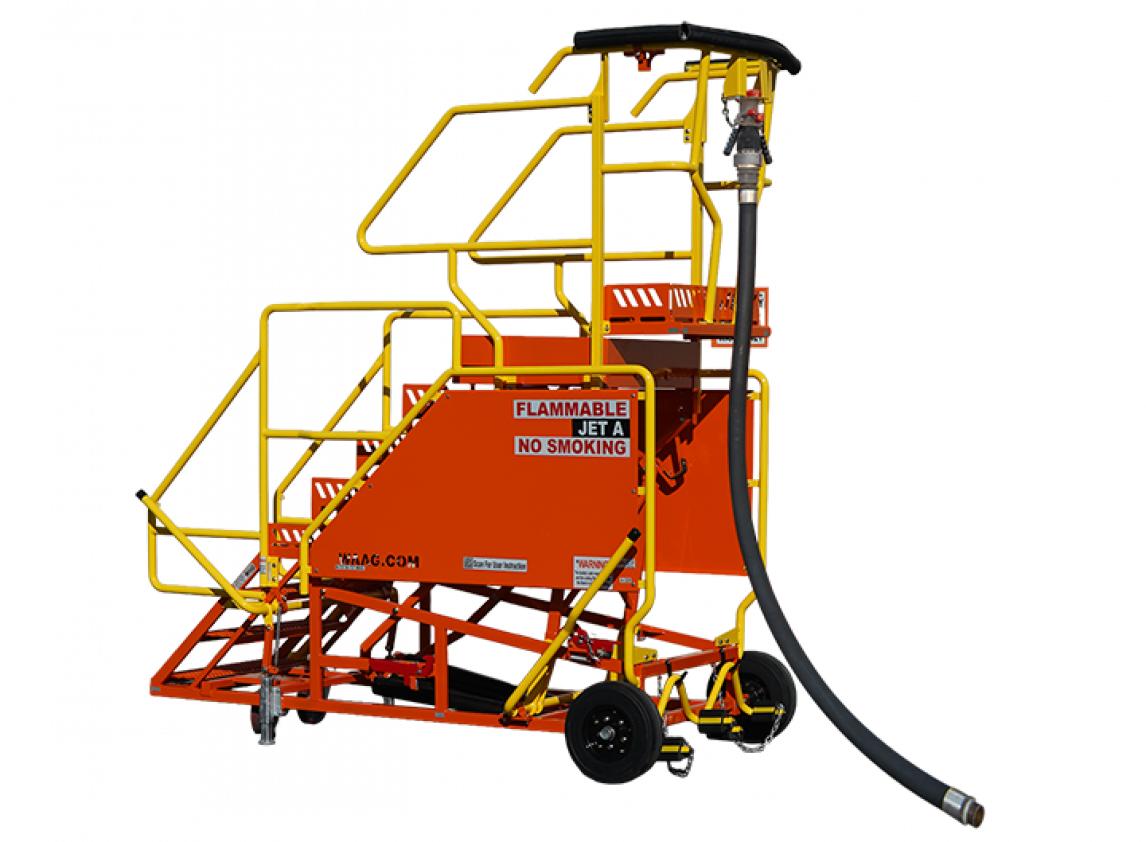

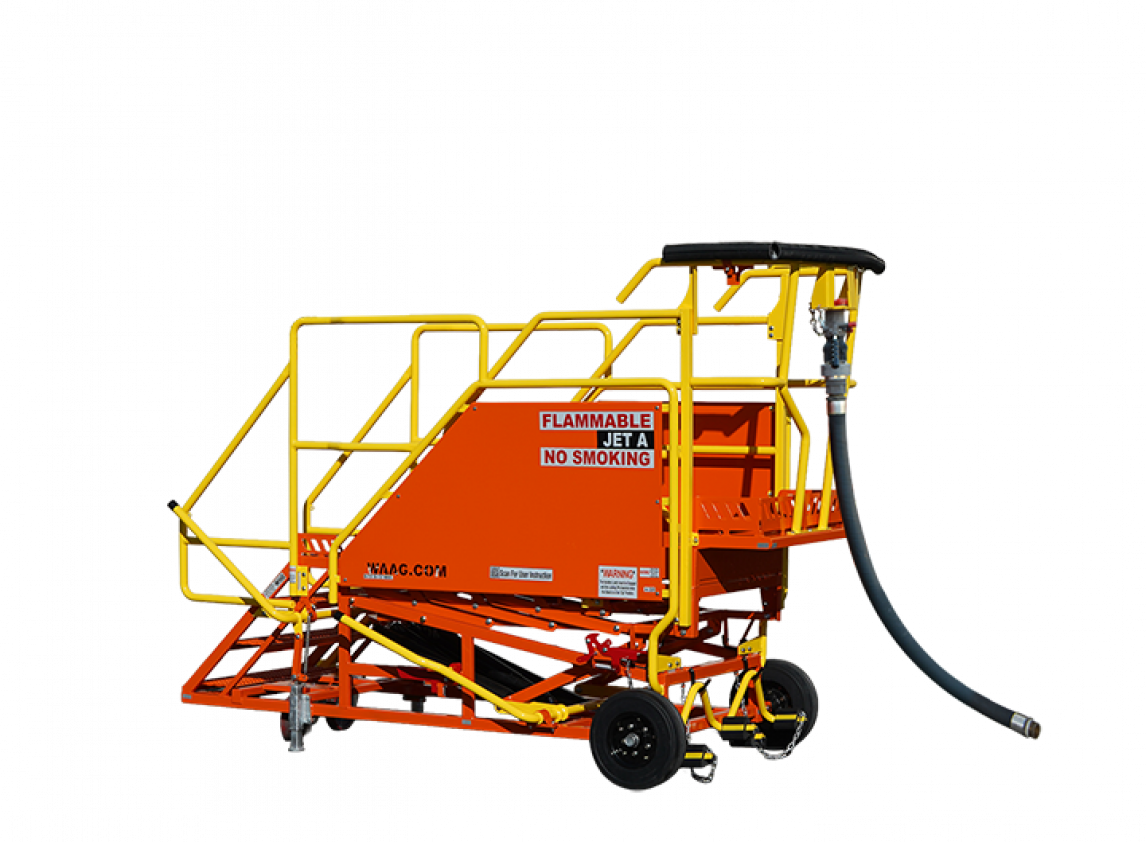

Main Feature: Our Adjustable Fueling Stand uses “Hydrant cart“ plumbing to fuel the aircraft. NO stand certification is required. The main deck easily adjusts from 34” to 66” high without using hydraulics. An additional step at the end of the deck provides an additional 8″ of height. Push or pull on a counterweighted lever and the hydrant cart hose and nozzle are easily put in position for personnel to fuel the aircraft safely. The down position is used for fueling 737, 737 MAX, E-175, & E-190 aircraft. The Up position is used for fueling A-320 aircraft.

Heavy duty steel construction: Ample cross bracing for durability and long service life.
Handrails: Signature design of heavy wall 1.5″ round steel tubing mounted to stand in two places at the lower end. This design avoids potential damage and creates a sturdy unit in up and down and side-to-side action.
Single-action plunge brakes. Just pull back on a lever and the stand is locked in place.
Towable Heavy Duty Tow Bar standard on all stands.
Main wheels: Two (16″ x 4″) Solid rubber main wheels featuring 5 lug hubs with heavy-duty bearings on heavy-duty axles. As a result, a single person can easily position our Adjustable Fueling Stair.
Steps: Galvanized steel Grip Strut with signature baked on safety yellow leading edge.
Finish: Powder coated with WAAG high visibility orange (other colors on request) and a second powder coat of U.V. resistant clear.
Shipping: Shipped in one piece. F.O.B. Waag, Van Nuys CA.

Dimensions

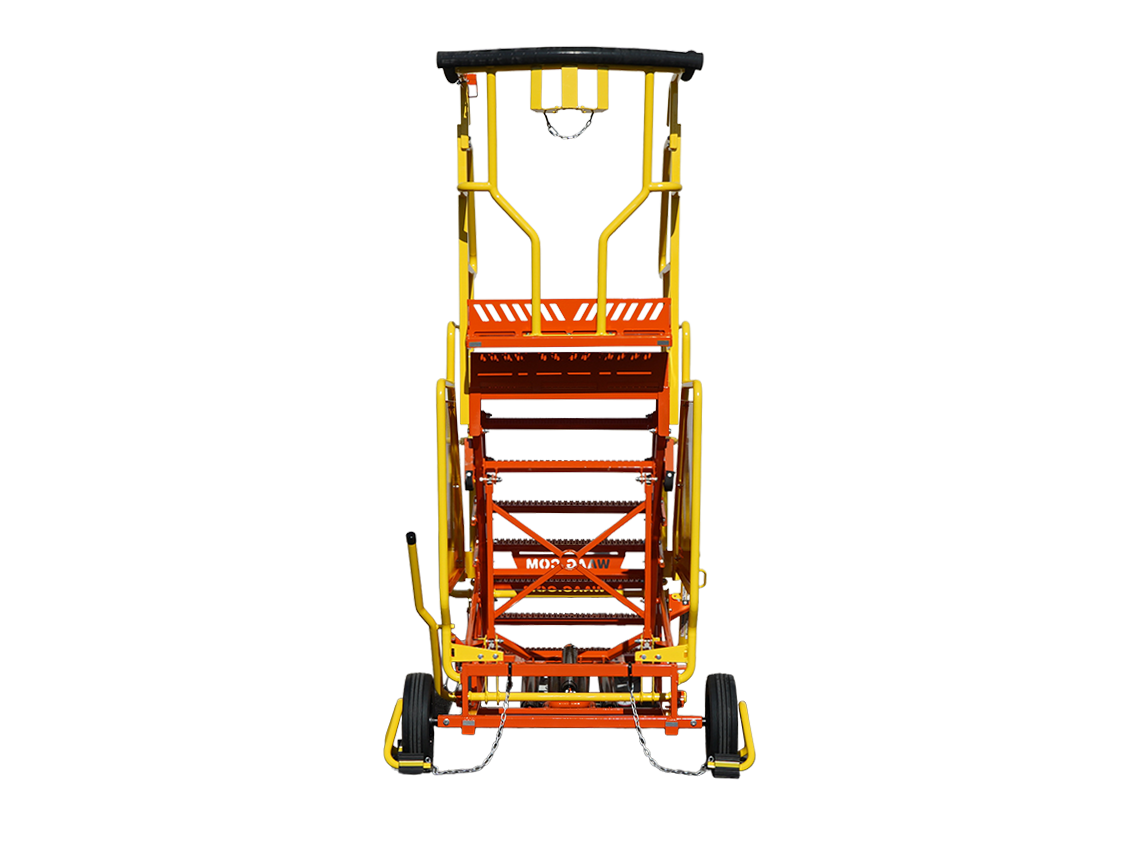

Top Deck: 34″ H in down position (42″ H deck step), 66″ H in up position (74″ H deck step)
Overall Size: 126″ L x 57″ W x 110″ H in down position (118″ H in up position)
Steps: 9-1/2″ L x 33-3/4” W
Services: 737, 737 MAX, E-175, & E-190 in Down Position & A-320 in Up Position

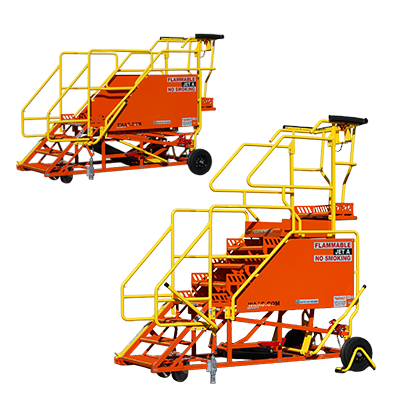

Height Adjustable Fueling Stair

Height Adjustable Fueling Stair.

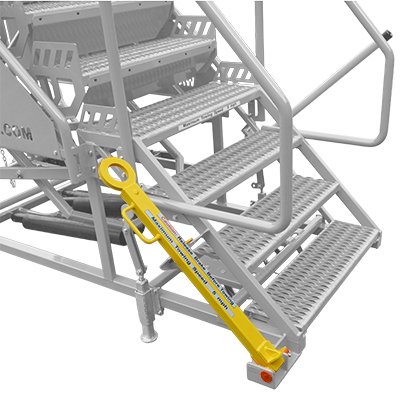

Heavy Duty Tow Bar

Heavy Duty Tow Bar.

Single Action Plunge Brakes

Single Action Plunge Brakes.

16

16″ Solid Rubber Wheel.

Adjustable Fueling Stand GSE. Made in the U.S.A, by WAAG.
