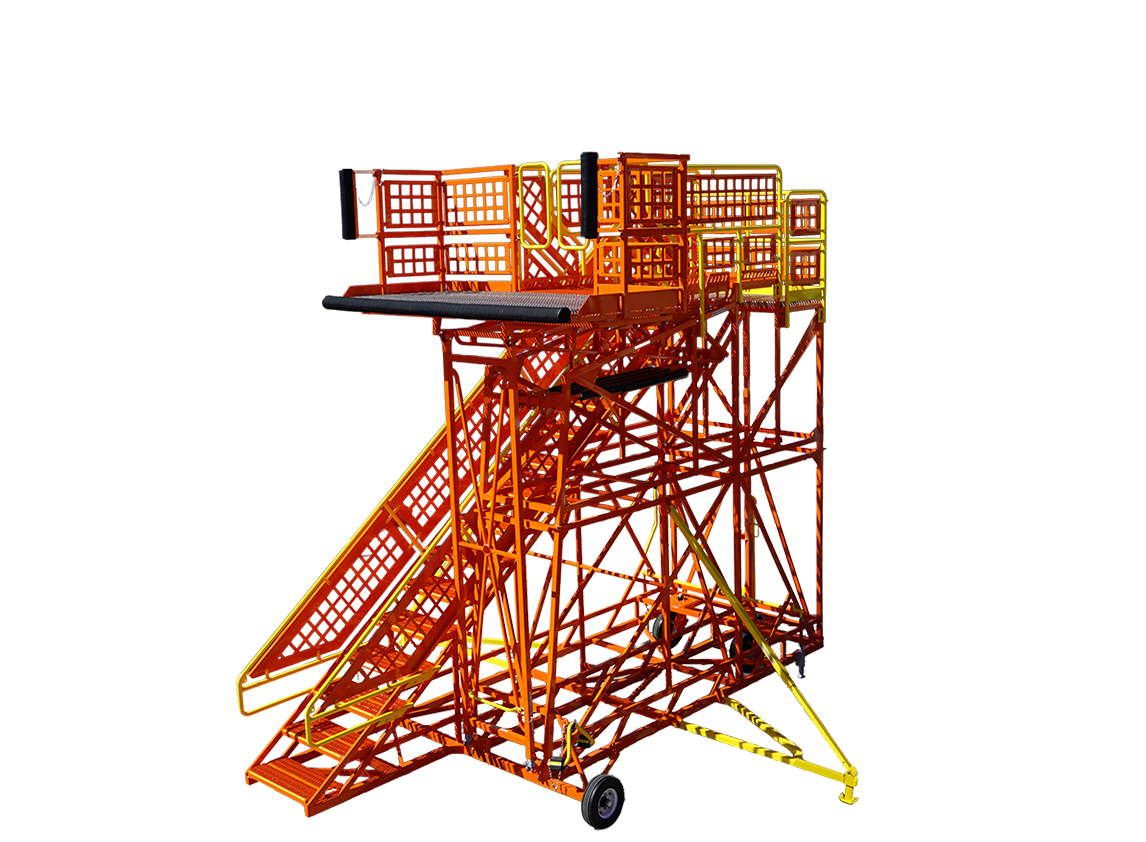

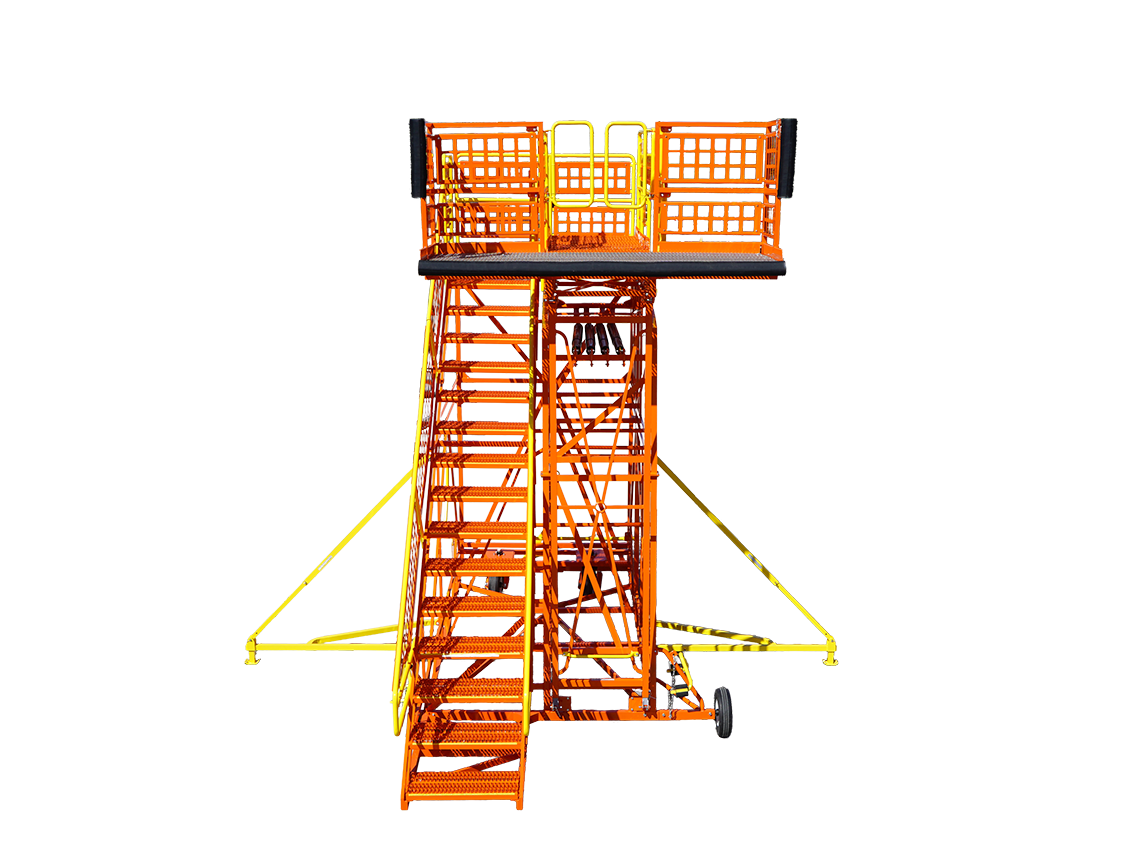

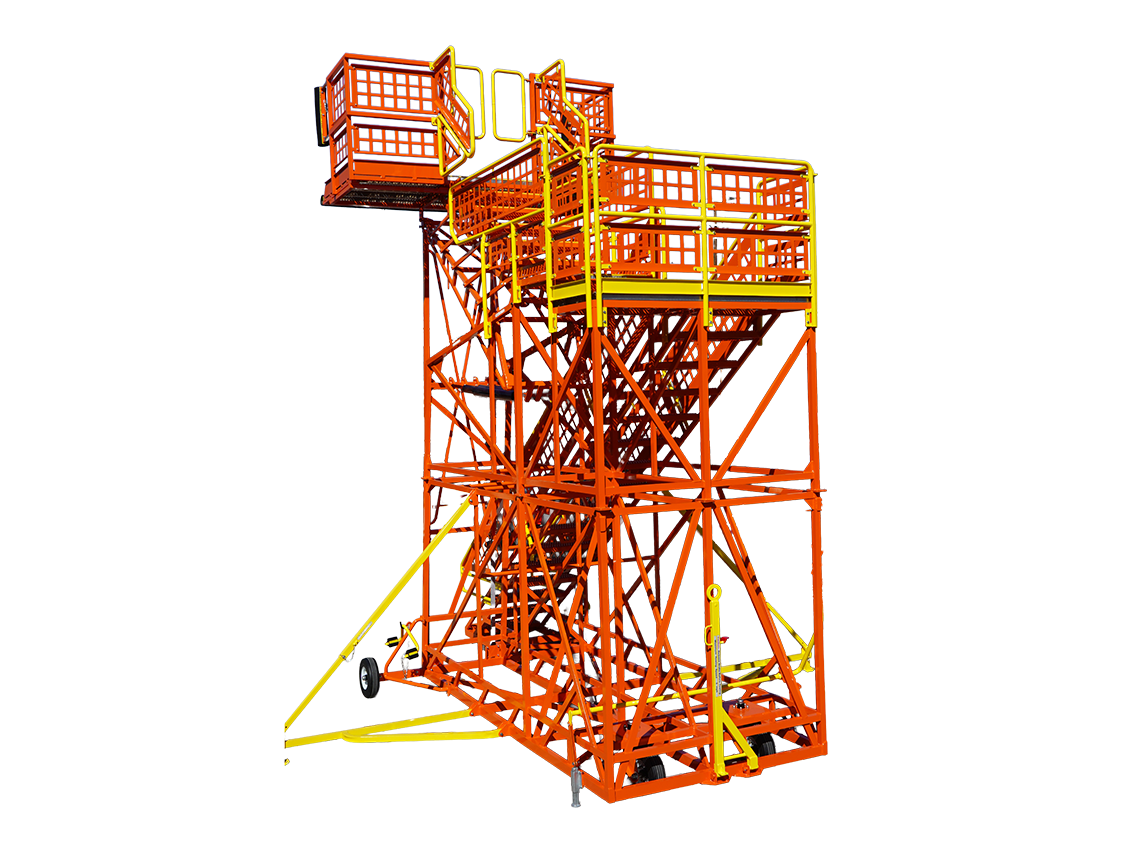

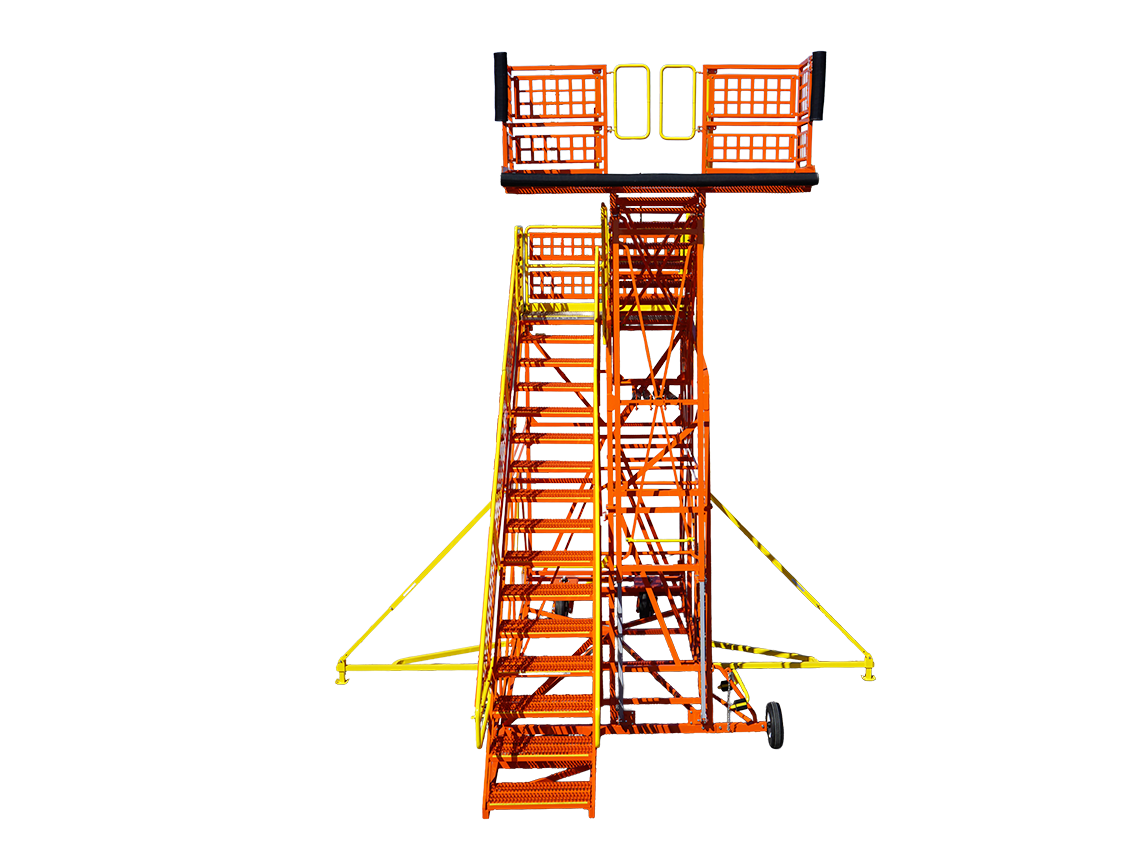

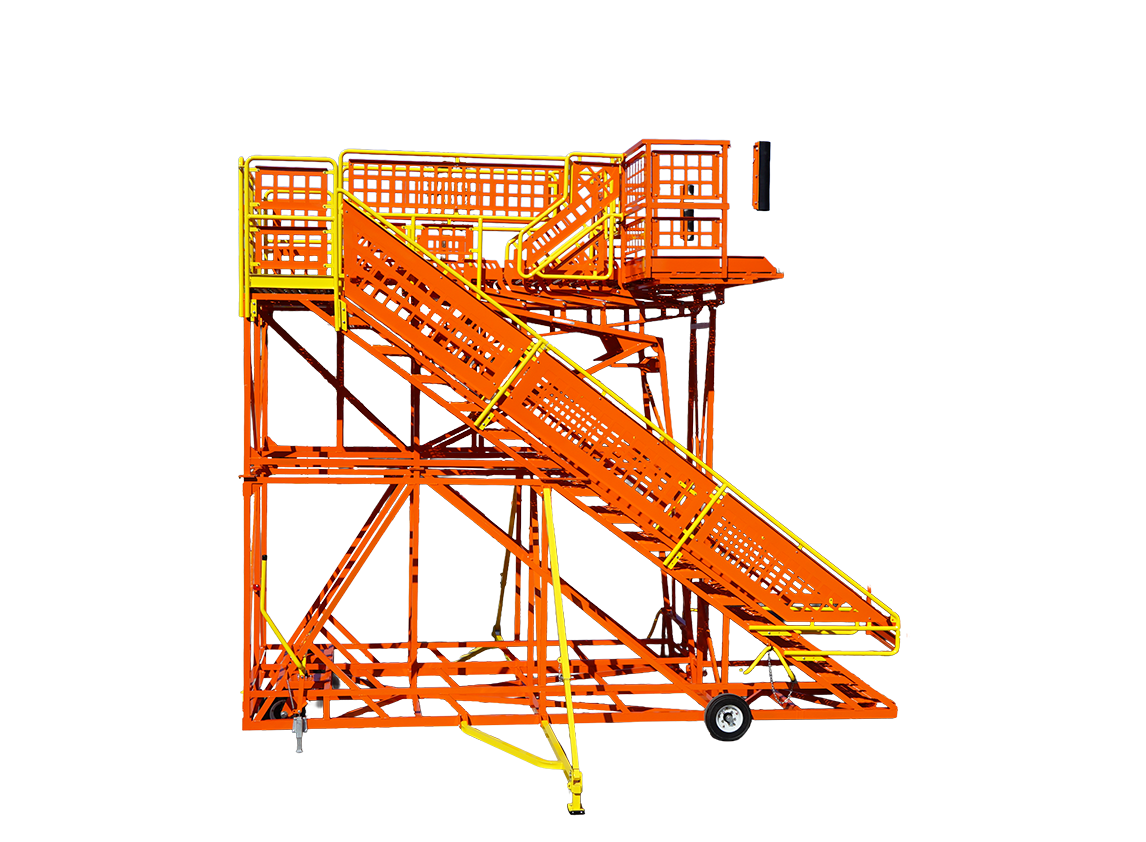

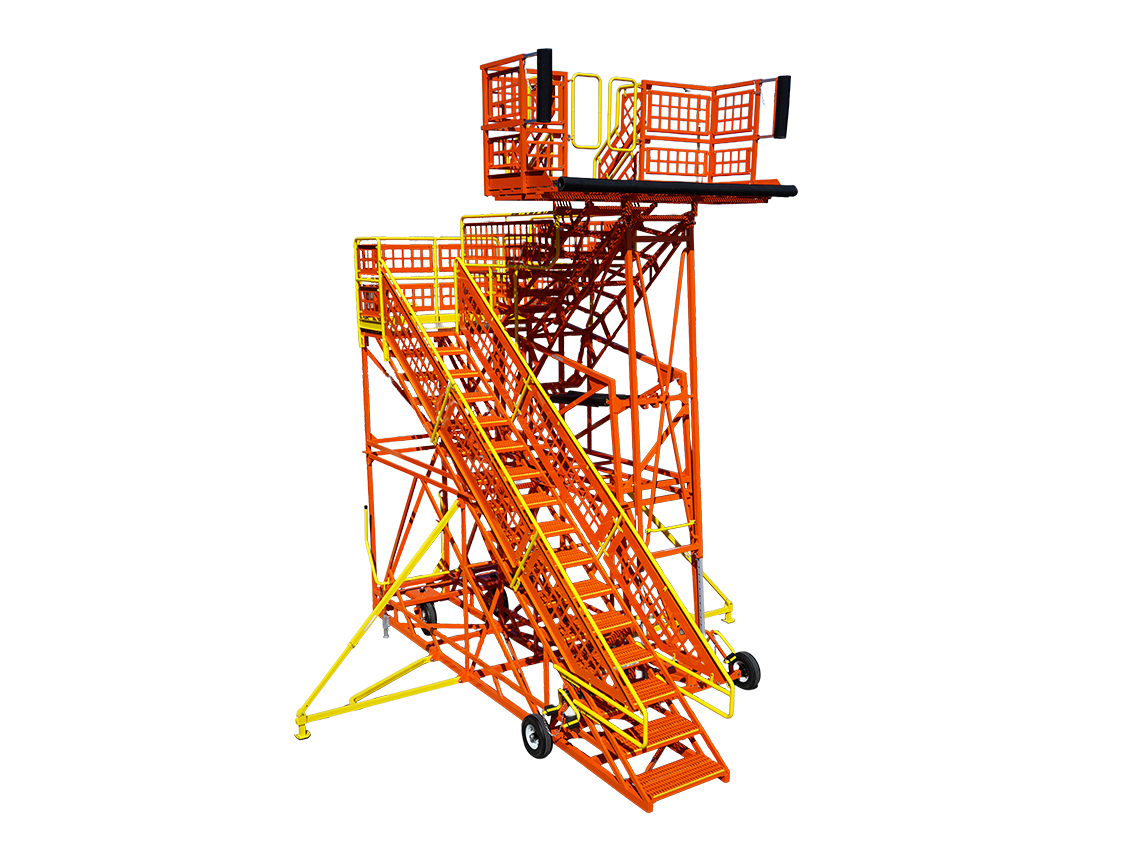

Wide-Body Aluminum Entry Adjustable Stand – #65259

Recommended for: All wide-body aircraft (A310/ A330 / A350 / A380 / B747 / B767 / B777 / B787)

Key Features:

Aluminum Construction: Designed to withstand harsh weather conditions, this stand features heavy-gauge aluminum tubing and substantial cross bracing for a

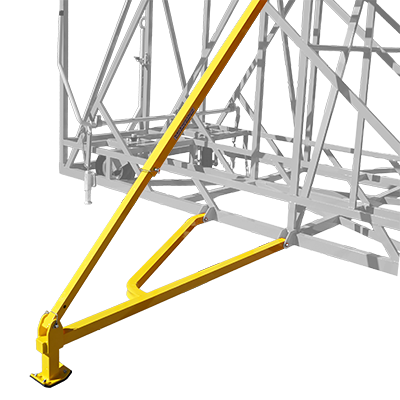

lightweight stand built to last. Stowable Outriggers provide additional support in windy conditions and large 16″ wheels and heavy-duty casters make stand easy to maneuver. Optional Fall Protection Stair and Deck Panels also available.

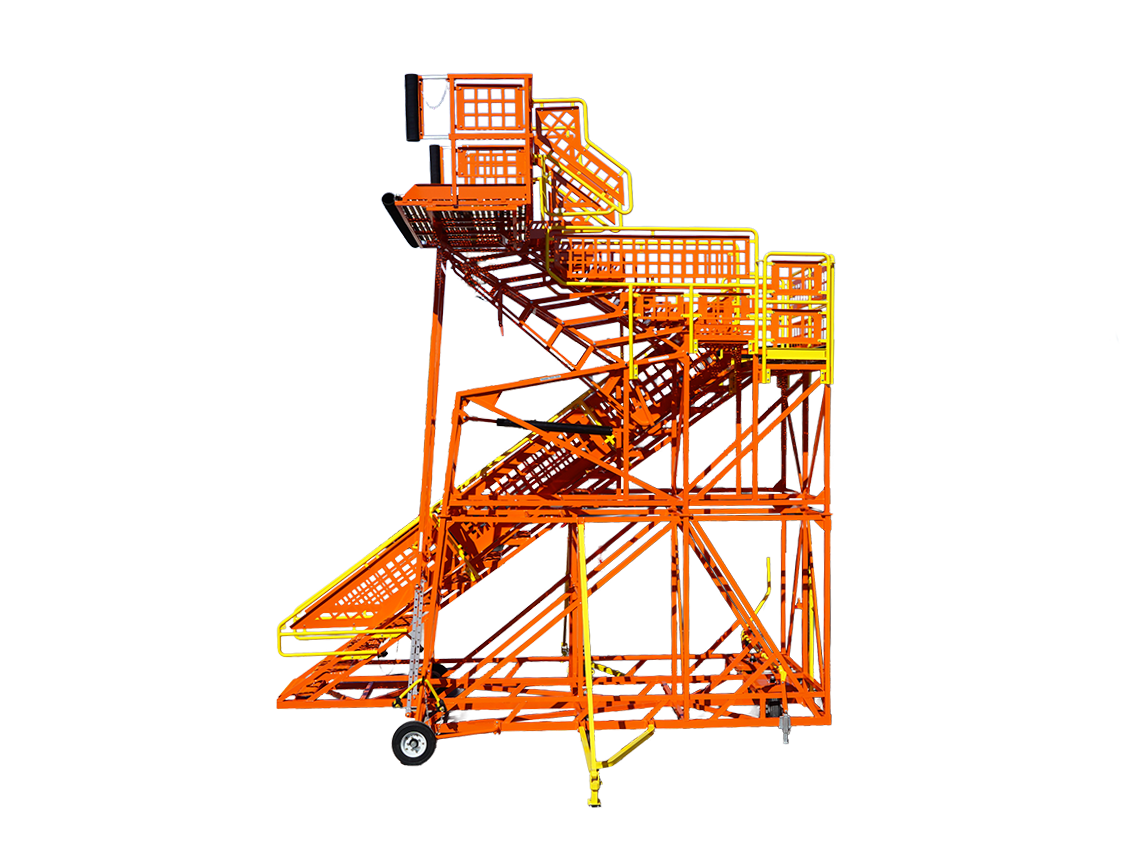

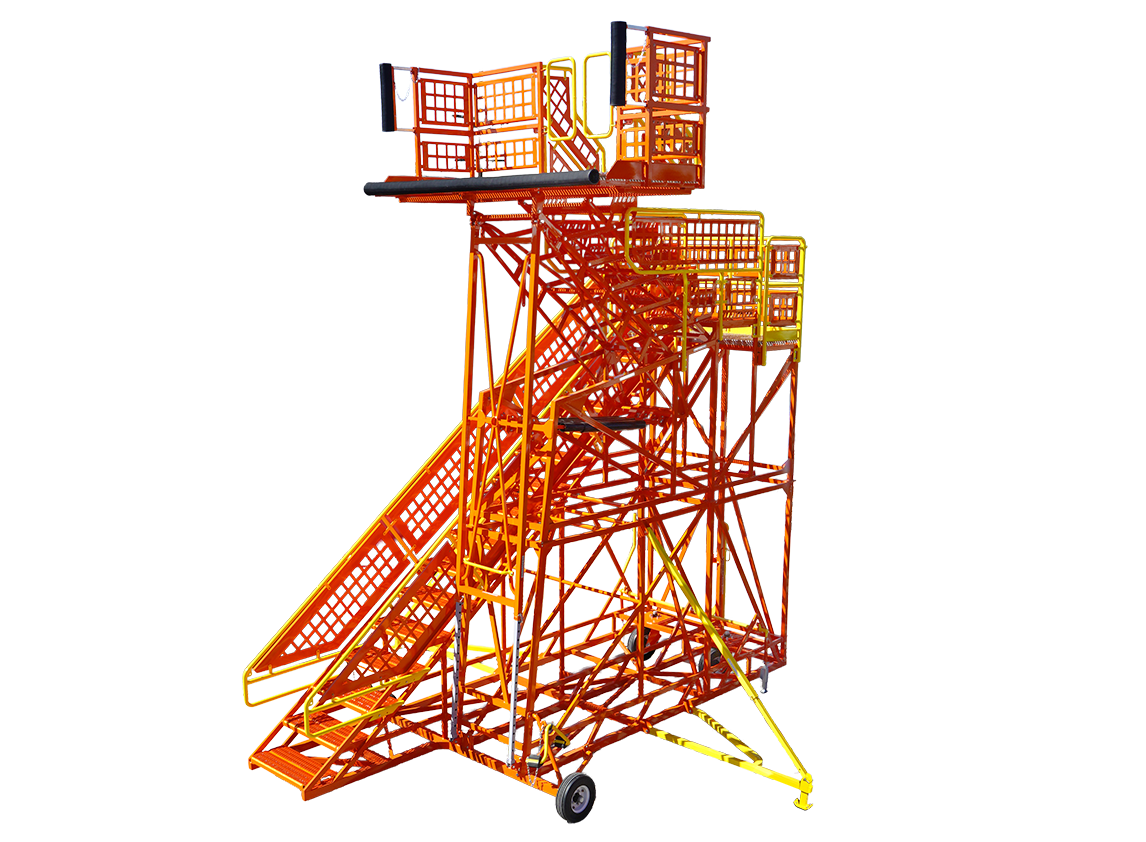

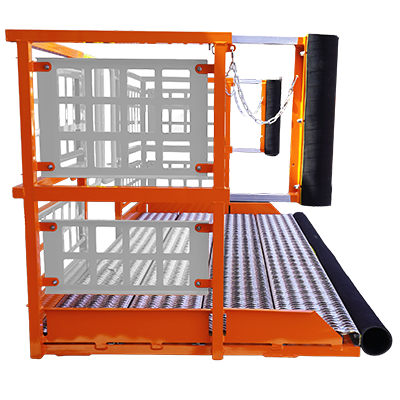

Adjustable Top Deck: Height-adjustable top deck that raises from 160″ to 206″ (deck surface height), allowing easy and safe access to wide body aircraft. The deck height can be locked in place at 3″ increments without the use of hydraulics.

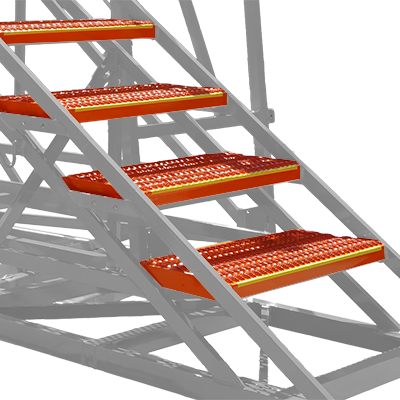

Sure Footing: Aluminum Grip Strut 14-inch deep stair steps on a shallow 30-degree descent, with signature baked-on safety yellow leading edge on each step.

Safety Rails: Signature heavy-wall 1.5″ round steel stair rails with continuous top rail provide added safety, strength and rigidity to the stand.

O.S.H.A.: Compliant forward ascent and descent stair.

Towable: Heavy-duty tow bar comes standard on all stands.

Single-Action Plunge Brakes: Easily engage brake lever to lock stand in place.

Ultra-Durable Finish: Powder coated with WAAG high visibility orange (standard) and an additional UV-resistant clear coat. Select colors available upon request.

Shipping: Shipped in three pieces. Complete deck on a pallet. The Lower Body Frame with handrails zip tied to the side. Upper Body Frame.

F.O.B. WAAG, Van Nuys CA.

Dimensions:

Overall Footprint: 225″ L x 110″ W

Top Deck Usable Space: 108″ W x 48″ D

Top Deck Height: 160″ H (in lowest position); 206″ H (in highest position)

Overall Height: 204″ H (in lowest position); 245.75″ H (in highest position)
