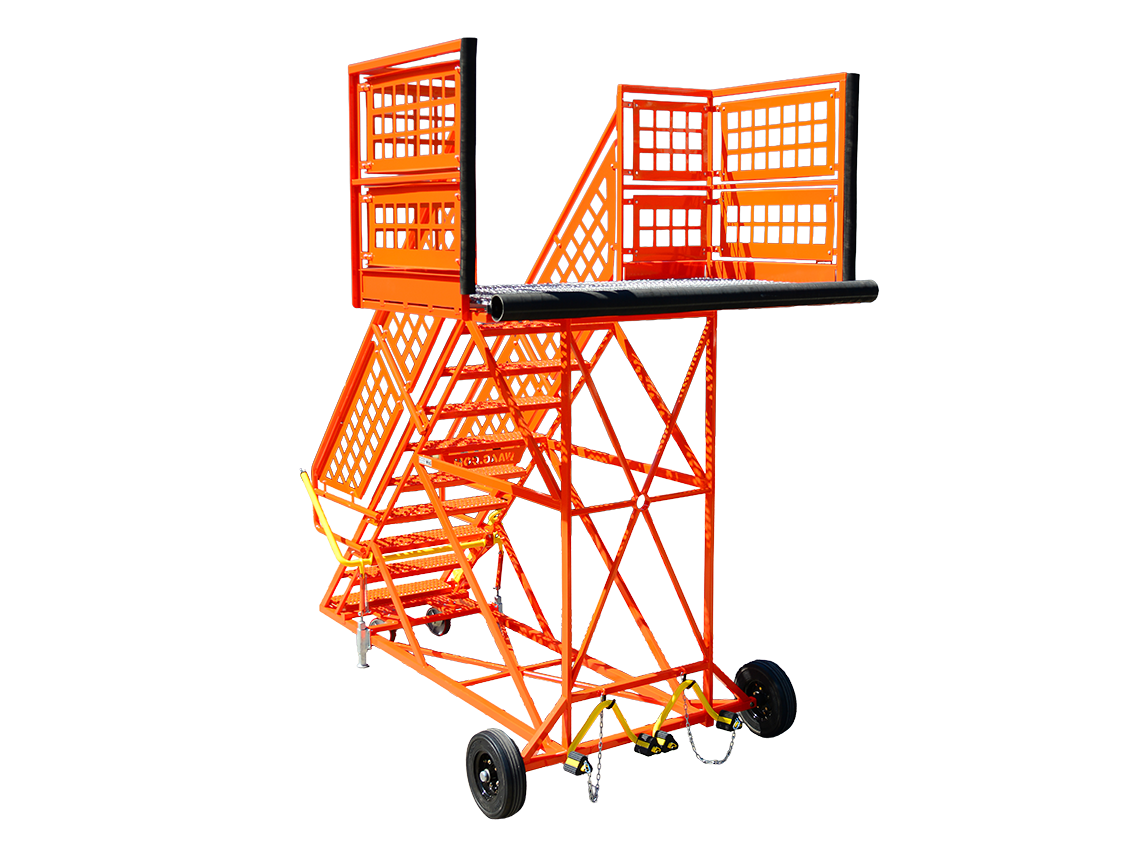

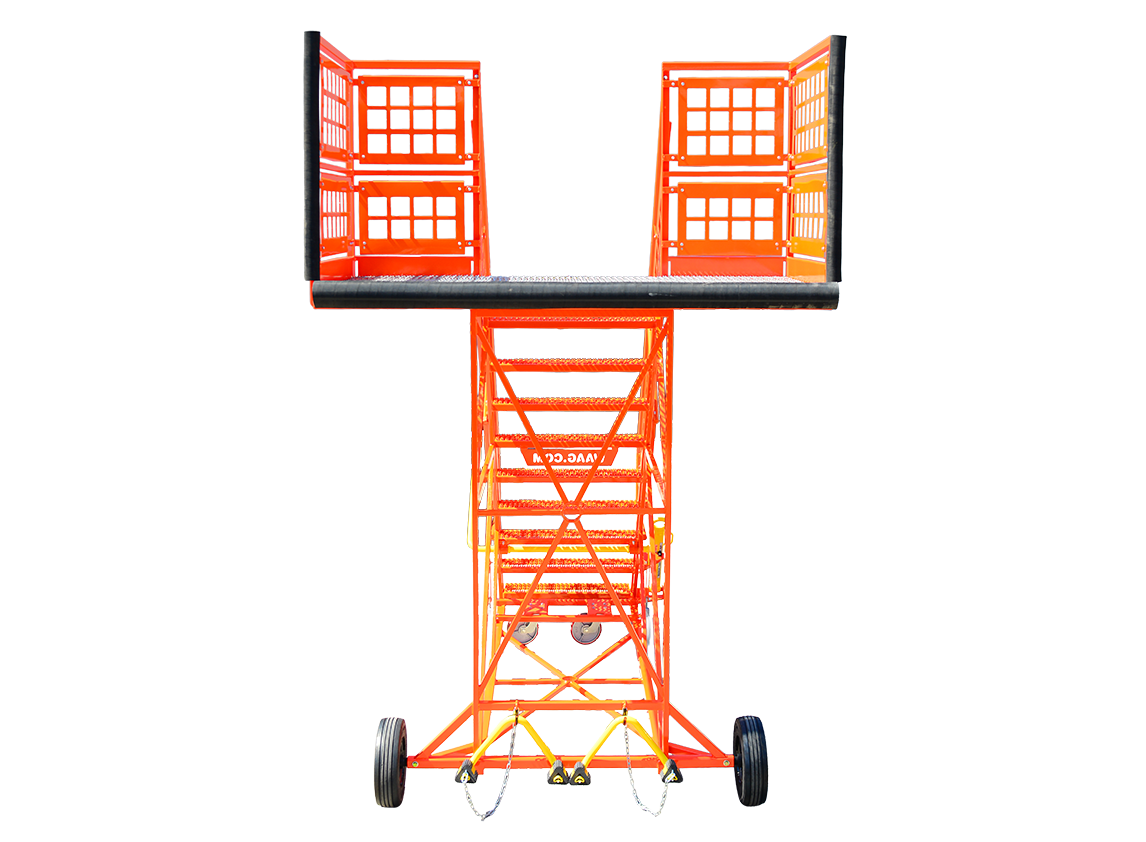

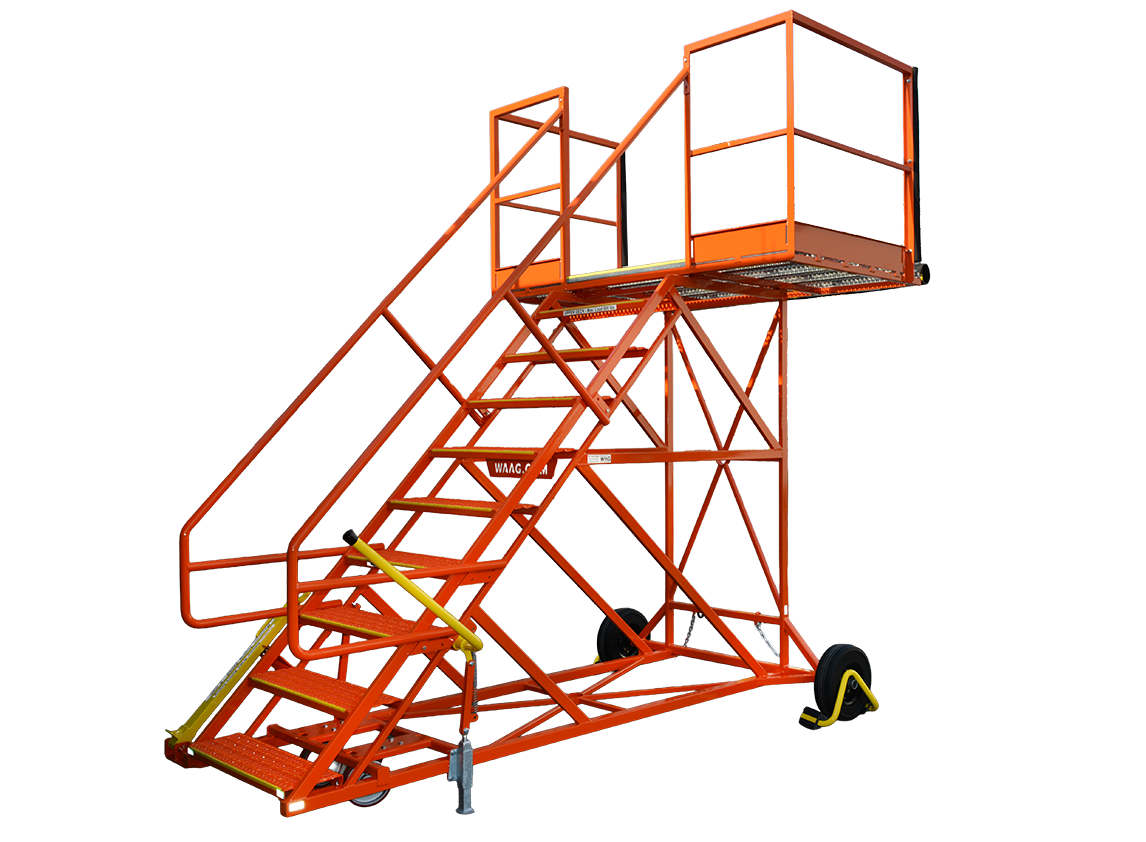

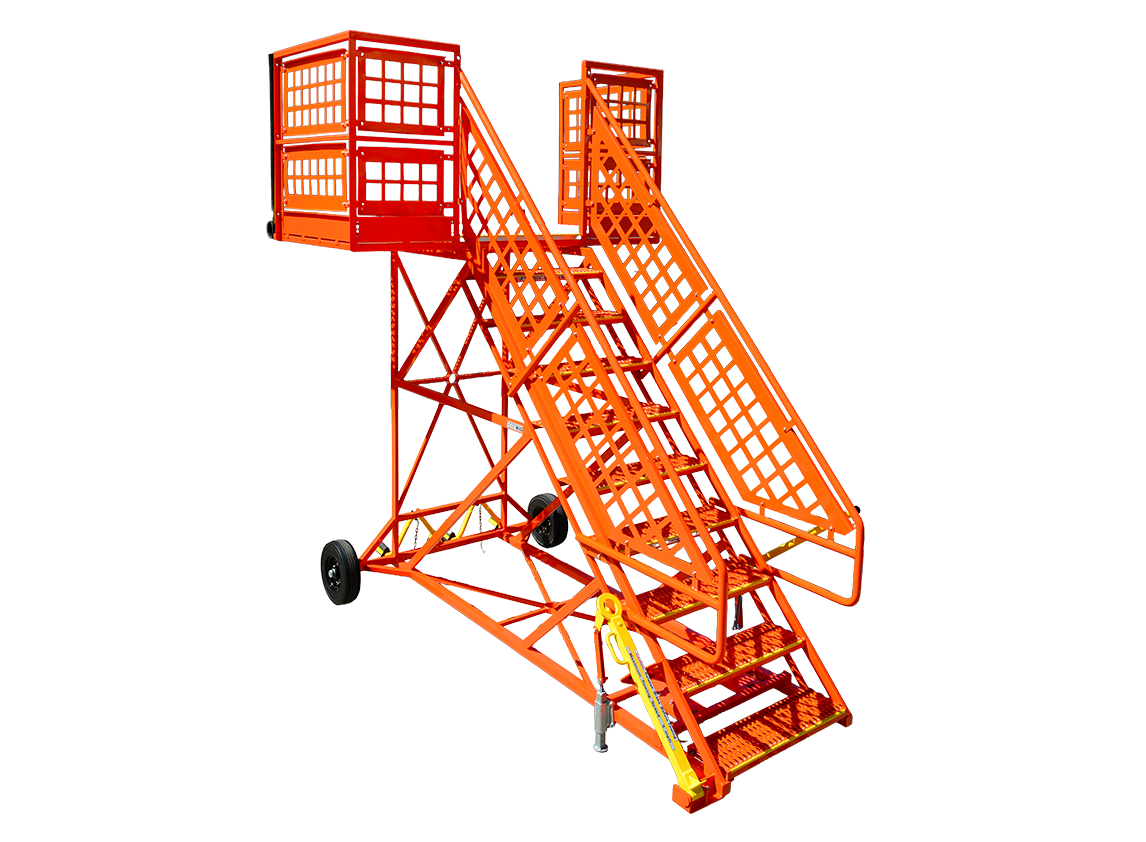

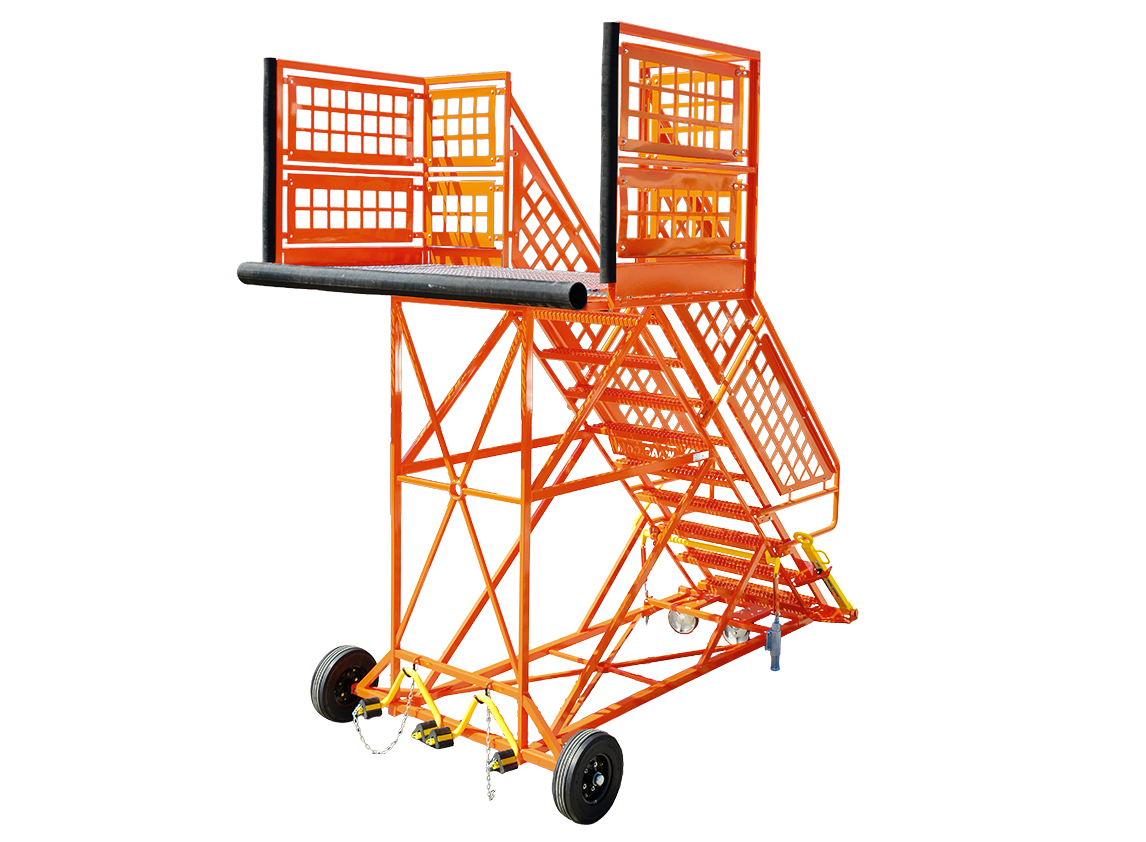

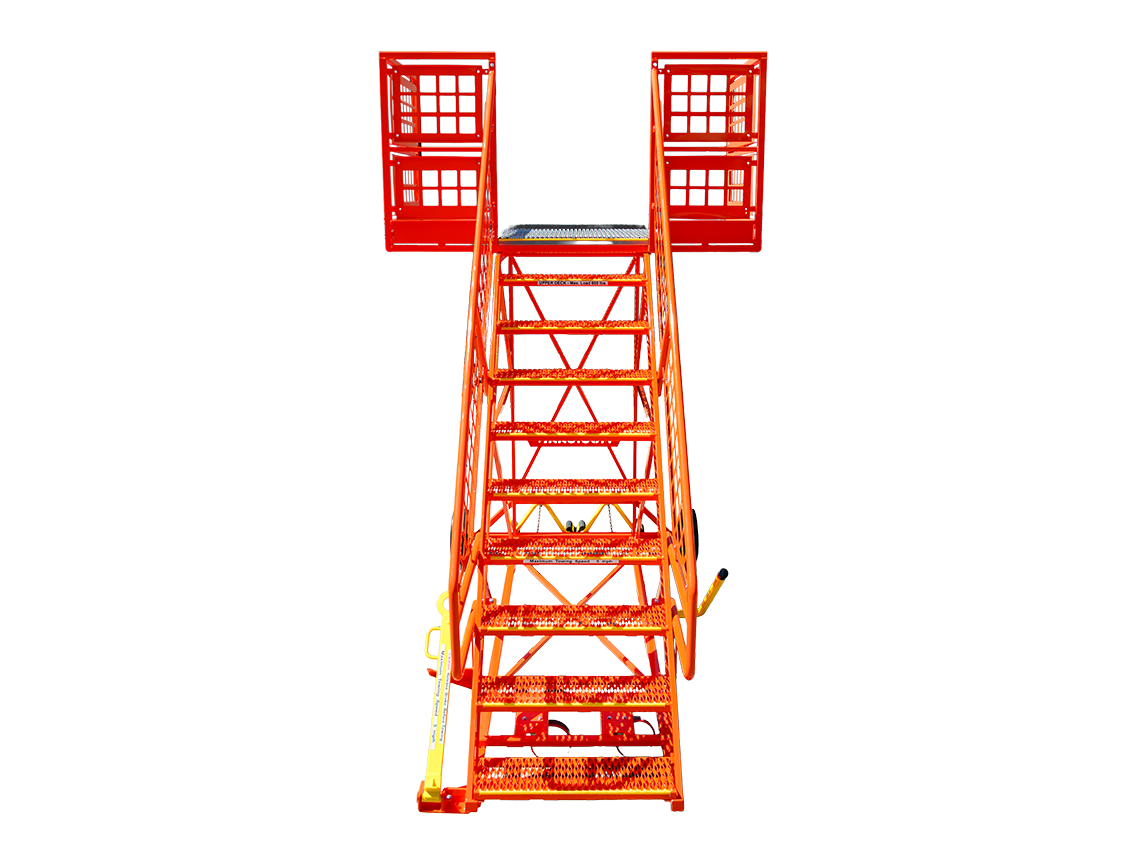

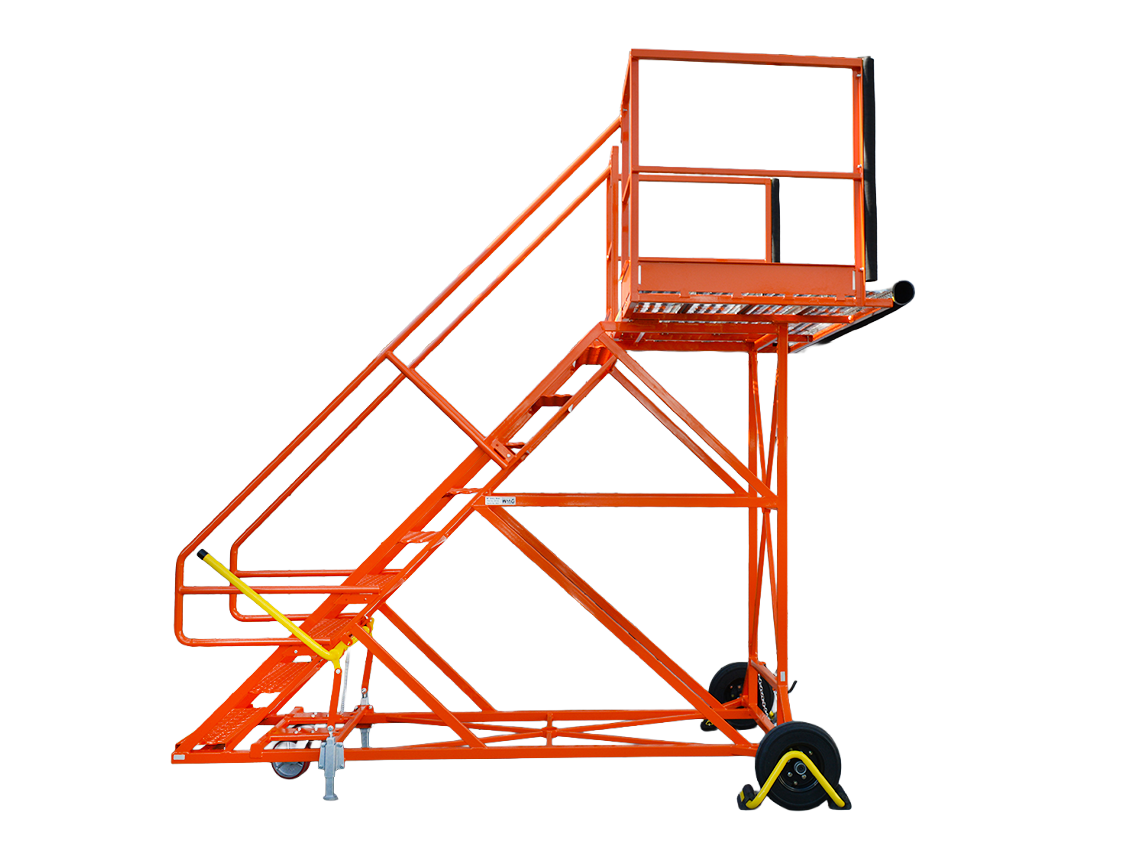

96″ High Entry Stand #20134
This stand has a 96″ fixed-height deck centered on the stair. As an alternative, we recommend our #65188 Adjustable Height Stand, with a deck that adjusts from 88” to 126” tall, with locking pins at 3-inch increments. In addition to accommodating the 737, our #65188 also supports the 737 MAX as well as A319 / A320 / A321.
Heavy-Duty Construction: Our products combine innovative design, heavy-gauge tubing and substantial cross-bracing to create stands that are lightweight, extremely durable – and built to last.
Easy to Maneuver: Our stands feature the highest quality wheel components, and can be easily positioned in place by one person:
- Main wheels: 16-inch solid rubber main wheels featuring 5-lug hubs with heavy-duty bearings on heavy-duty axles.
- Swivel wheels: 8″ x 2″ Urethane-Over-Steel wheels with precision bearings and KPL swivels.
Sure Footing: Galvanized steel Grip Strut on deck surface, as well as stair steps that feature our signature baked on safety yellow leading edge.
Safety Rails: Signature heavy-wall 1.5″ round steel stair rails with continuous top rail, provide added safety, strength and rigidity to the stand. Fall Protection grids available at additional cost.
O.S.H.A.: Compliant forward ascent and descent stair.
Tow ready: Heavy-duty tow bar comes standard on all stands.
Single-action plunge brakes: Easily engage brake lever to lock stand in place.
Ultra-Durable Finish: Powder coated with WAAG high visibility orange and an additional UV-resistant clear coat. Select colors available upon request.
Shipping: Shipped in two pieces. Complete deck on a pallet. The main stair unit with handrails zip tied to the side. F.O.B. WAAG, Van Nuys CA.
Top deck Usable Space: 48″ L x 86″ W.
Top deck Height: 96″ H.
Main Body footprint: 144″ L x 72″ W.
Overall size: 140″ L x 70″ W x 138″ H.
Steps: 9-1/2” L x 33-3/4” W.
Wheel Chocks
Secures stand in place, with hooks to store them when towing.
Heavy Duty Tow Bar
Standard on all WAAG stands
Plunge Brakes
Just pull back on a lever and the stand is locked in place.
Easy Maneuverability
Premium wheels allow stand to be positioned by one individual.
96″ High Entry Stand
Made in the U.S.A. by WAAG
